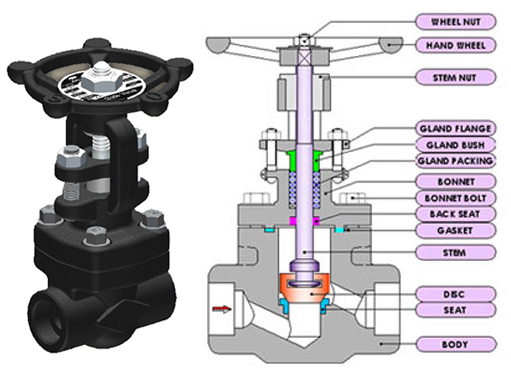

Flow Control System Forged Steel Globe Valves are generally available with Plug Type Disc, which is designed to give leak tight seating over a long period of in built wear life. All Globe Valve stem is made from solid one piece construction. The yoke bush of Globe Valve has a long thread engagement for accurate stem alignment. The standard range of Flow Control System Globe Valves covers sizes of up to 2 inch (DN50) and pressure rating up to 2500 class in Regular (Reduce) bore & Standard (Full bore) design.

Design & Testing Standard:

Salient Features:

• Body & Bonnet made from high quality forging. The Forgings are precision machined for high performance
• Leak Proof Body-Bonnet Joint With Spiral Wound Gasket
• Rising Stem & Rising Hand Wheel Construction.
• Ground Finish Stem
• Self Aligning Two Piece Gland
• Die moulded Graphite (Grafoil) Packing Rings, controlled clearance between stem, gland and bonnet bushing for guaranteed low emissions and also suitable for higher temperature.
• Precision Stem Packing Chamber
• Deep stuffing box is providing for tightness and maximum long packing life.
• Swinging Eye Bolts facilitate easy access to the stuffing box.
• Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.
• Stellited Disc, Seat Ring & Back Seat can also be offered on special request.
